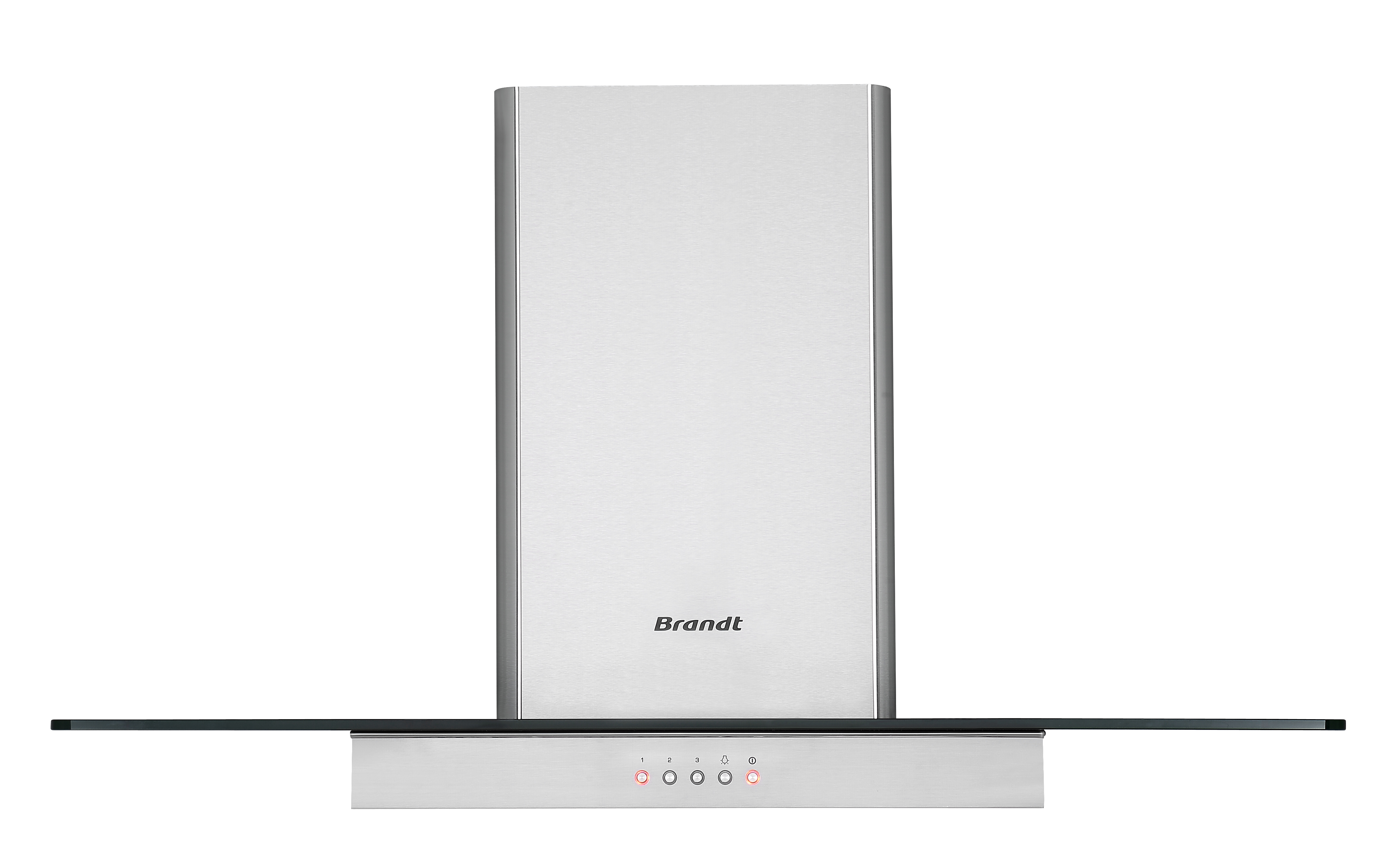

Wall Mount Hood BHB1944IX - Stainless Steel + Glass

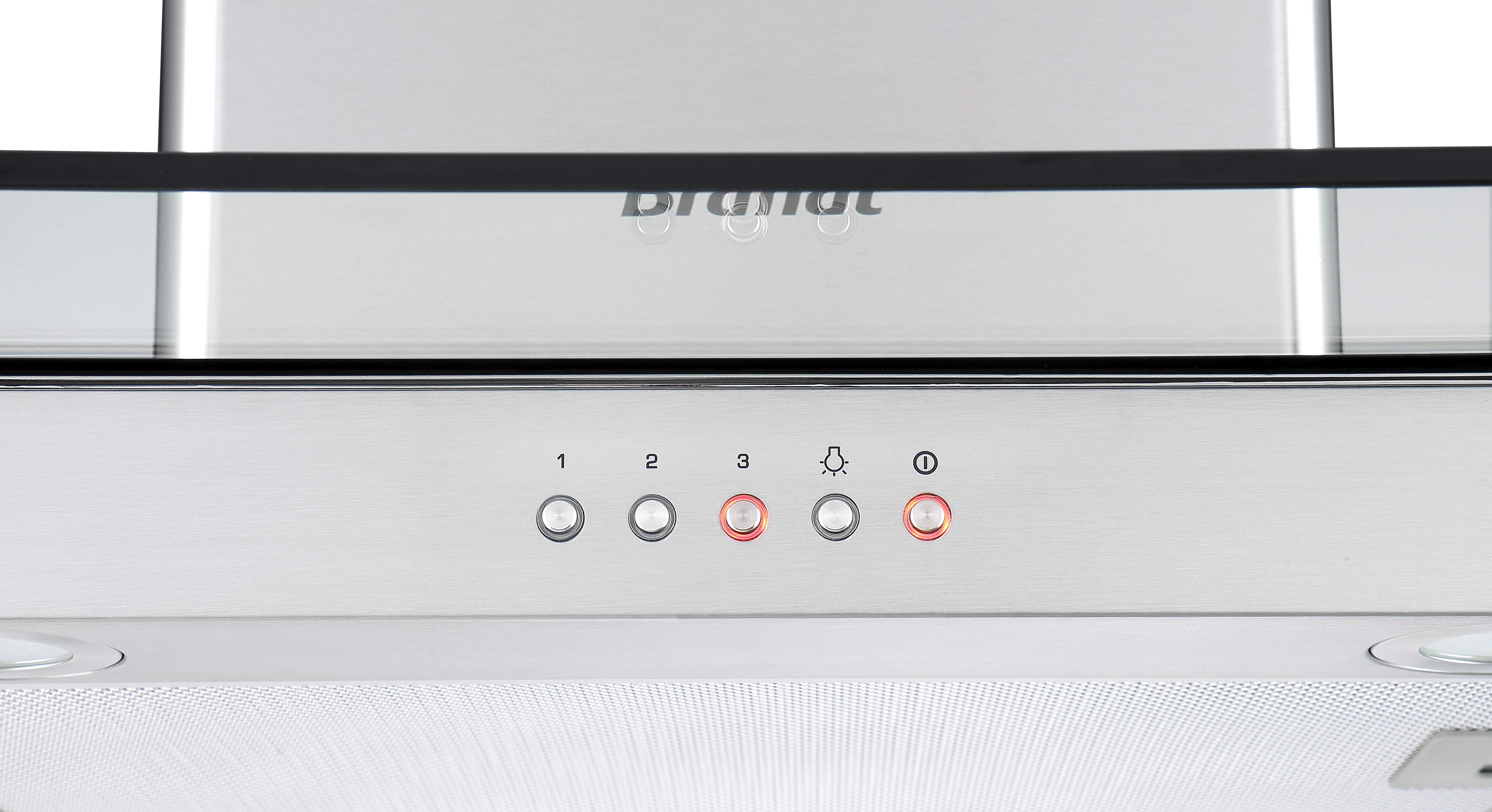

- Electronic controls
They guarantee accuracy in terms of aspiration.

- Standard carbon filter
The filter provides an effective air purification in recycling mode.

- LED Lighting
To ensure low power consumption and a perfect lighting this model is equipped with LED lighting.

Technical characteristics

Main Specifications

Type of hoods
Wall decorative hood
Output air extraction (m3/h)
537
Width (cm)
90

Control panel

Type of control
Backlit electronic controls

Lighting

Number of lights
2
Light position
Right and Left
Type of bulb
LED
Luminance totale en Lux
124
Lighting power (W)
3

Performance

Number of speed positions
3
Acoustic power level (recycling) (dBA)
43
Max recycling air extraction (m3/h)
332
Minimum evacuation sound level (dBA)
43
Max evacuation sound level (dBA)
64

Filtering

Référence du kit de recyclage
AFC-62
Number of filters
1
No-return airflow clap
Yes
Accessories
Charcoal filter

Dimensions

Height of product without chimmey (mm)
65
Dimensions of product HxWxD (mm)
65X900X500
Height of chimmey min/max (mm)
500/980
Dimensions of the packed product HxWxD (mm)
570X955X455
Gross weight (kg)
24
Net weight (kg)
20

Connections

Voltage (V)
220-240
Frequency (Hz)
50
Current (A)
10
Connection rating (W)
78
